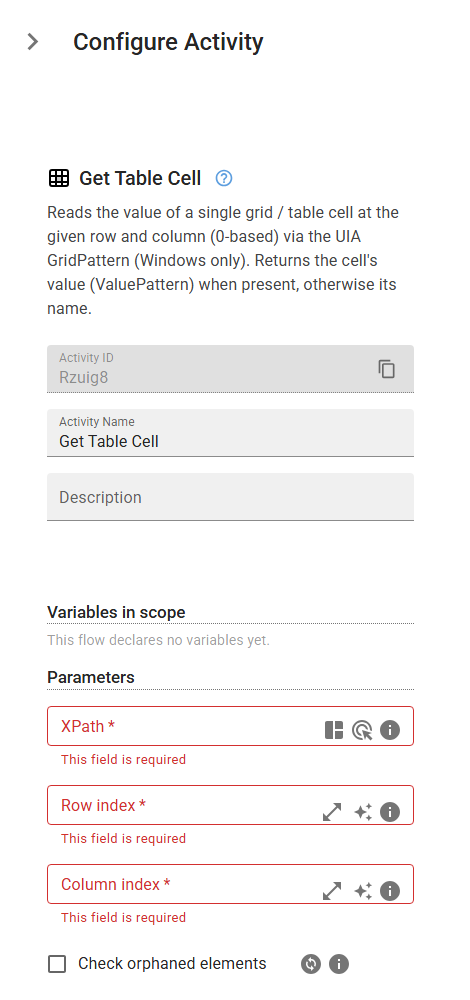

Get Table Cell
Reads the value of a single grid / table cell at the given row and column (0-based) via the UIA GridPattern (Windows only). Returns the cell's value (ValuePattern) when present, otherwise its name.
Category: Desktop Application Automation · Group: Desktop · Activity name: GetTableCell
Example
outputVariable = GetTableCell("<xPath>", 0, tableColumn=0, checkOrphanedElements=False)
Inputs
| Name | Type | Required | Default | Description |
|---|---|---|---|---|
| XPath | string | Yes | XPath expression that identifies the grid / table element. | |
| Row index | integer | Yes | Zero-based row index of the cell to read. | |
| Column index | integer | Yes | Zero-based column index of the cell to read. | |
| Check orphaned elements | boolean | False | When the element is not found by its XPath, scan the parent window's area for elements detached from the UI Automation tree. Slower; enable only for windows known to orphan their elements. |
Outputs
| Name | Type | Description |
|---|---|---|
| outputVariable | string | Specifies the name of the variable that will store the cell value. |
