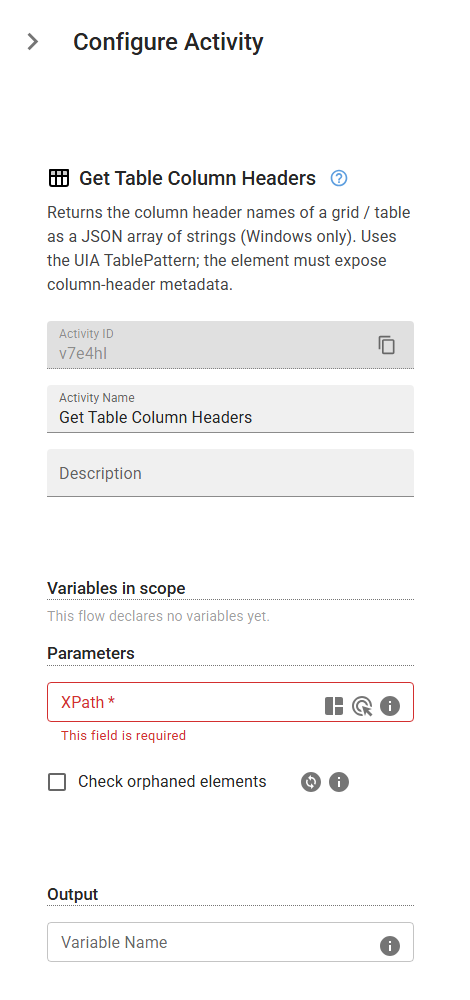

Get Table Column Headers
Returns the column header names of a grid / table as a JSON array of strings (Windows only). Uses the UIA TablePattern; the element must expose column-header metadata.
Category: Desktop Application Automation · Group: Desktop · Activity name: GetTableColumnHeaders
Example
outputVariable = GetTableColumnHeaders("<xPath>", checkOrphanedElements=False)
Inputs
| Name | Type | Required | Default | Description |
|---|---|---|---|---|
| XPath | string | Yes | XPath expression that identifies the grid / table element. | |
| Check orphaned elements | boolean | False | When the element is not found by its XPath, scan the parent window's area for elements detached from the UI Automation tree. Slower; enable only for windows known to orphan their elements. |
Outputs
| Name | Type | Description |
|---|---|---|
| outputVariable | array | Specifies the name of the variable that will store the column headers as a JSON array. |
