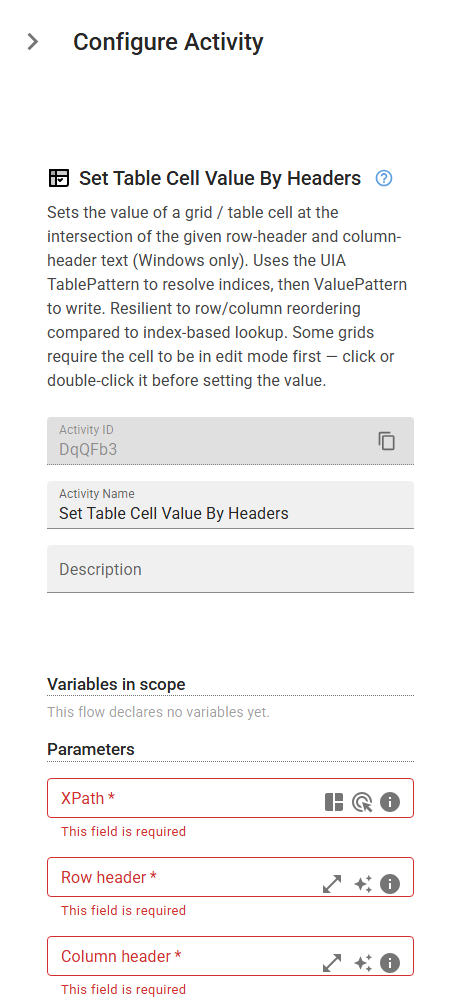

Set Table Cell Value By Headers

Sets the value of a grid / table cell at the intersection of the given row-header and column-header text (Windows only). Uses the UIA TablePattern to resolve indices, then ValuePattern to write. Resilient to row/column reordering compared to index-based lookup. Some grids require the cell to be in edit mode first — click or double-click it before setting the value.

Category: Desktop Application Automation · Group: Desktop · Activity name: SetTableCellValueByHeaders

Example

SetTableCellValueByHeaders("<xPath>", "<tableRowHeader>", tableColumnHeader="<tableColumnHeader>", valueToSet="<valueToSet>", checkOrphanedElements=False)

Inputs

Name	Type	Required	Default	Description
XPath	string	Yes		XPath expression that identifies the grid / table element.
Row header	string	Yes		Visible text of the row header to look up.
Column header	string	Yes		Visible text of the column header to look up.
Value	string	Yes		The value to write into the cell.
Check orphaned elements	boolean		False	When the element is not found by its XPath, scan the parent window's area for elements detached from the UI Automation tree. Slower; enable only for windows known to orphan their elements.
